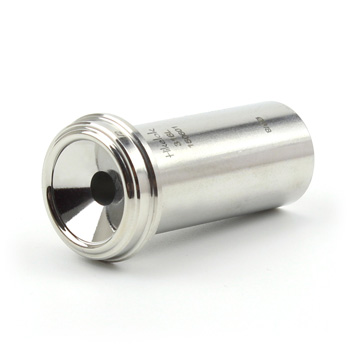

Metal Gasket Face Seal Fittings-Blind Gland
IntroductionHikelok Metal Gasket Face Seal Fittings offer the high purity of a metalto-metal seal, providing leak-tight service from vacuum to positive pressure.The seal on a VCR assembly is made when the gasket is compressed by two beads during the engagement of a male nut or body hex and a female nut.Available in sizes from 1/16 to 1 in.and 6 to 18 mm.Silver-plated female threads to prevent galling and ensure easy, consistent assembly.The materials include 316,316L, and 316L VAR (Vacuum Arc Remelt) stainless steel materials are available
FeaturesMetal-to-metal seal provides perfect leak-tight service from criticalvacuum to high pressure Female threads are silver plated to prevent gallingTwo test port for easy leak testing Non-rotational female nut to prevent transmission of torque Available in sizes from 1/16 to 1 in.and 6 to 18 mm Hikelok fittings materials include 316,316L, and 316L VAR (Vacuum Arc Remelt) stainless steel materials are available Standard surface finish on glands and bodies is a roughness averageof 10uin.(O.25um)Ra
AdvantagesFemale threads are silver plated to prevent gallingTwo test port for easy leak testing Non-rotational female nut to prevent transmission of torque No "virtual leak" zones Side-load retainer gasket for easy installation and minimal clearance for removal Precision manufactured gasket for maximum performance Material heat code is stamped on glands and all shapes to ensure raw material traceability
